UCI Undergraduate Researcher: Additive Manufacturing of Ceramic Matrix Composite Microlattices
April 2018 - July 2018
My Role
This was a project that I supported under the guidance and supervision of a masters student and professor in the Henry Samueli School of Engineering. The goal of the project was to develop a Direct Ink Writing Printer capable of 3D printing Ceramic Matrix Composite Microlattices, that would later be post worked in a furnace process. As a young engineering student, this was a great opportunity to get me engaged in engineering concepts, as well as entertain my enthusiasm for additive manufacturing. My roles and responsibilities are summarized below:

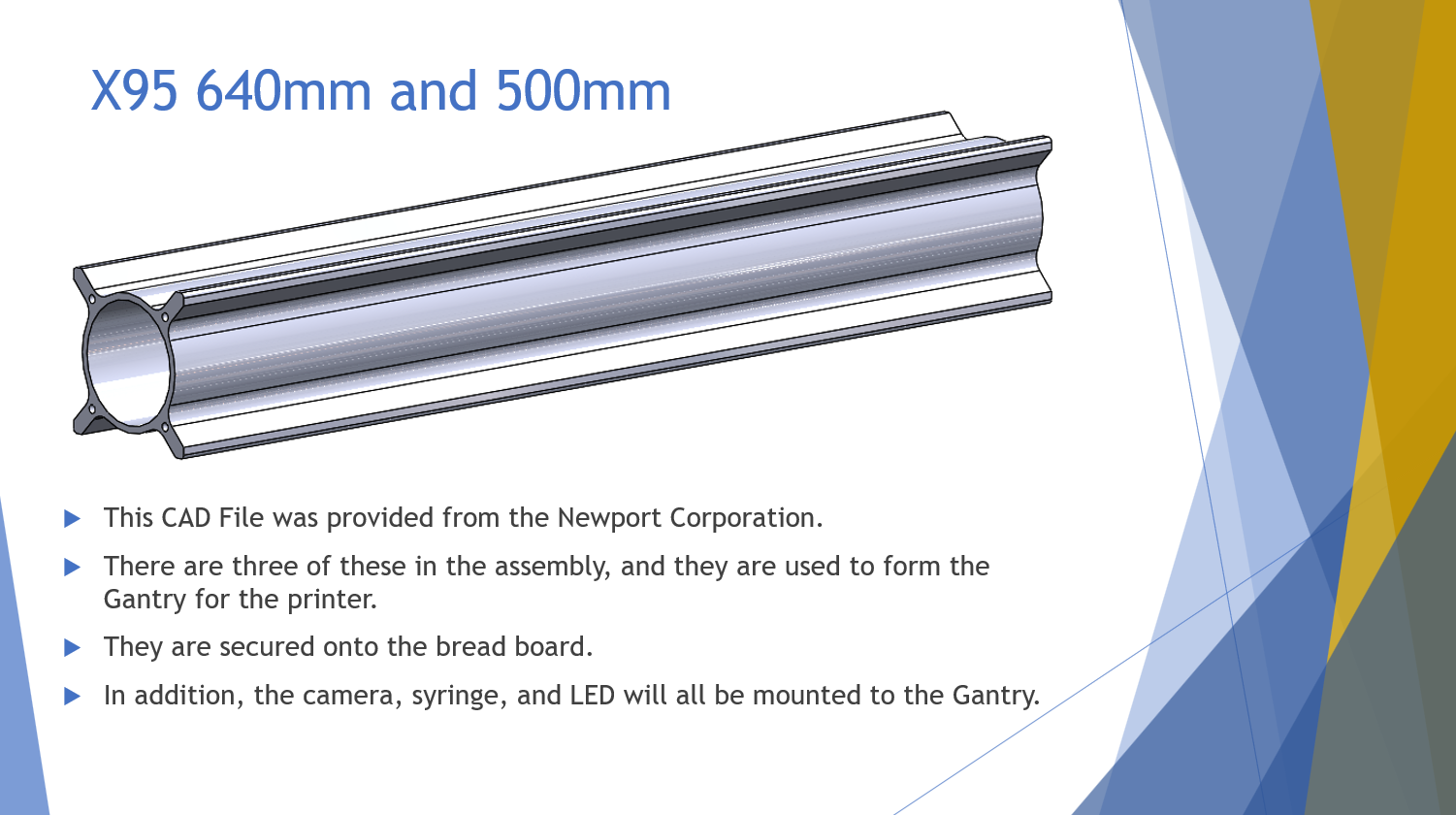

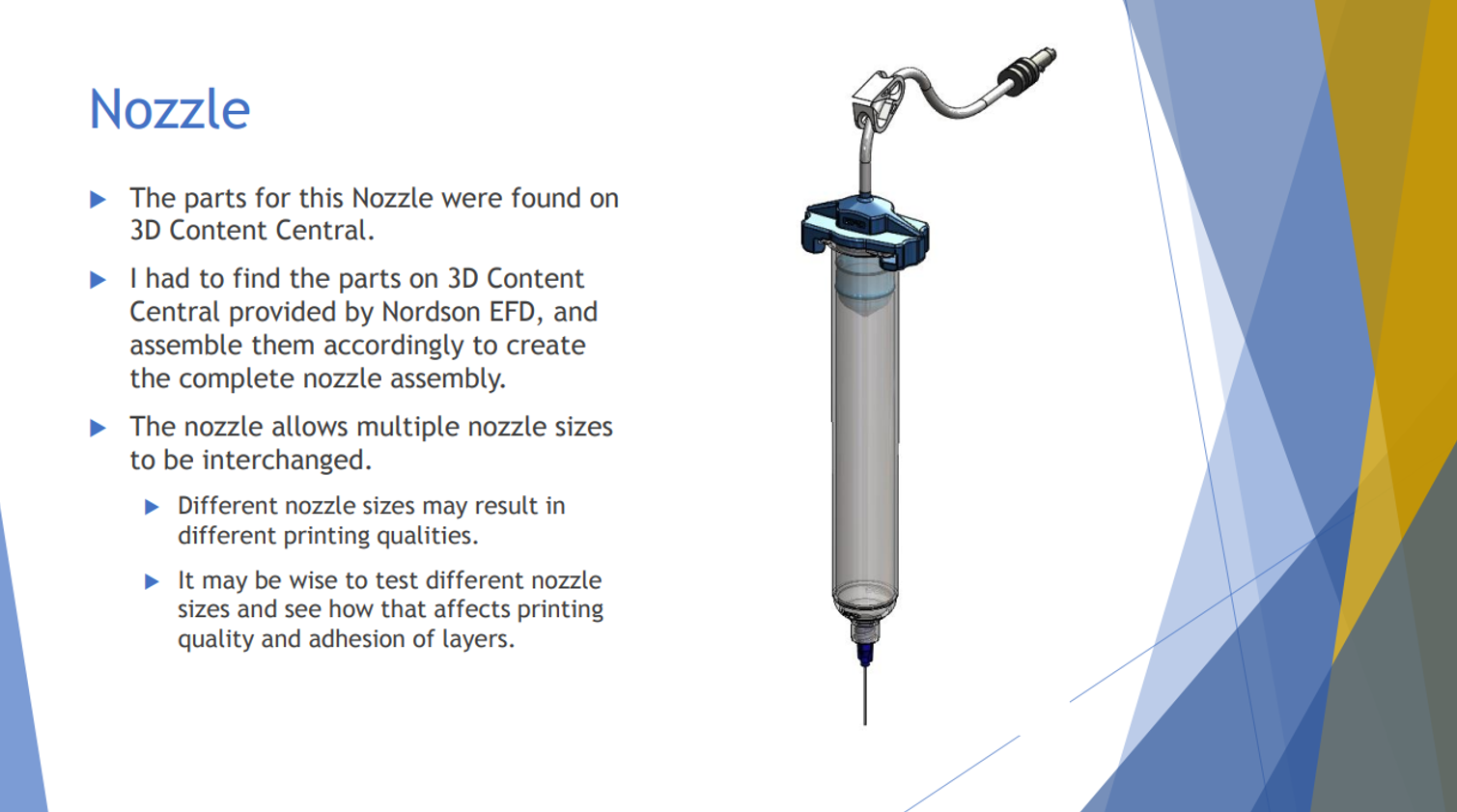

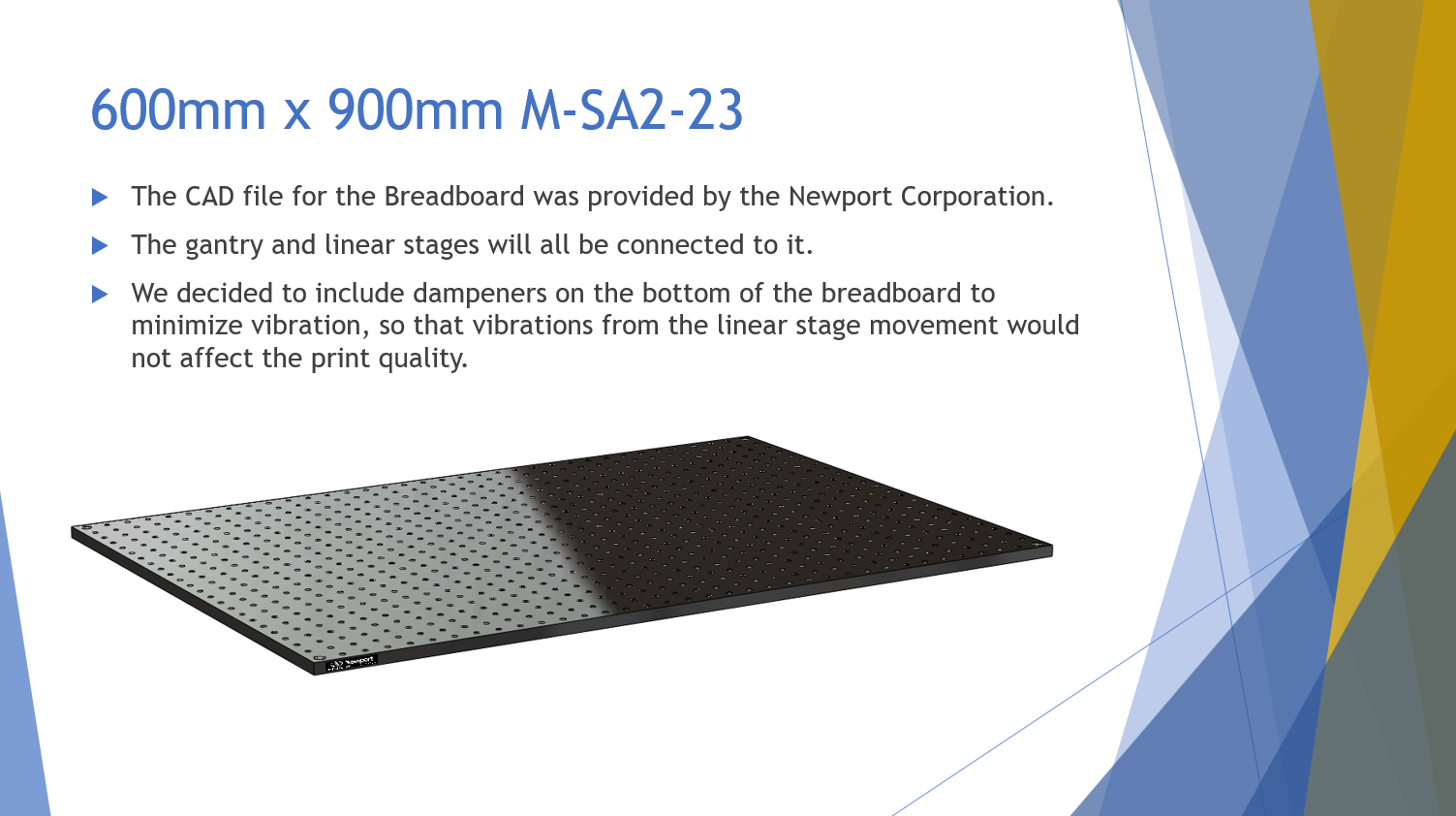

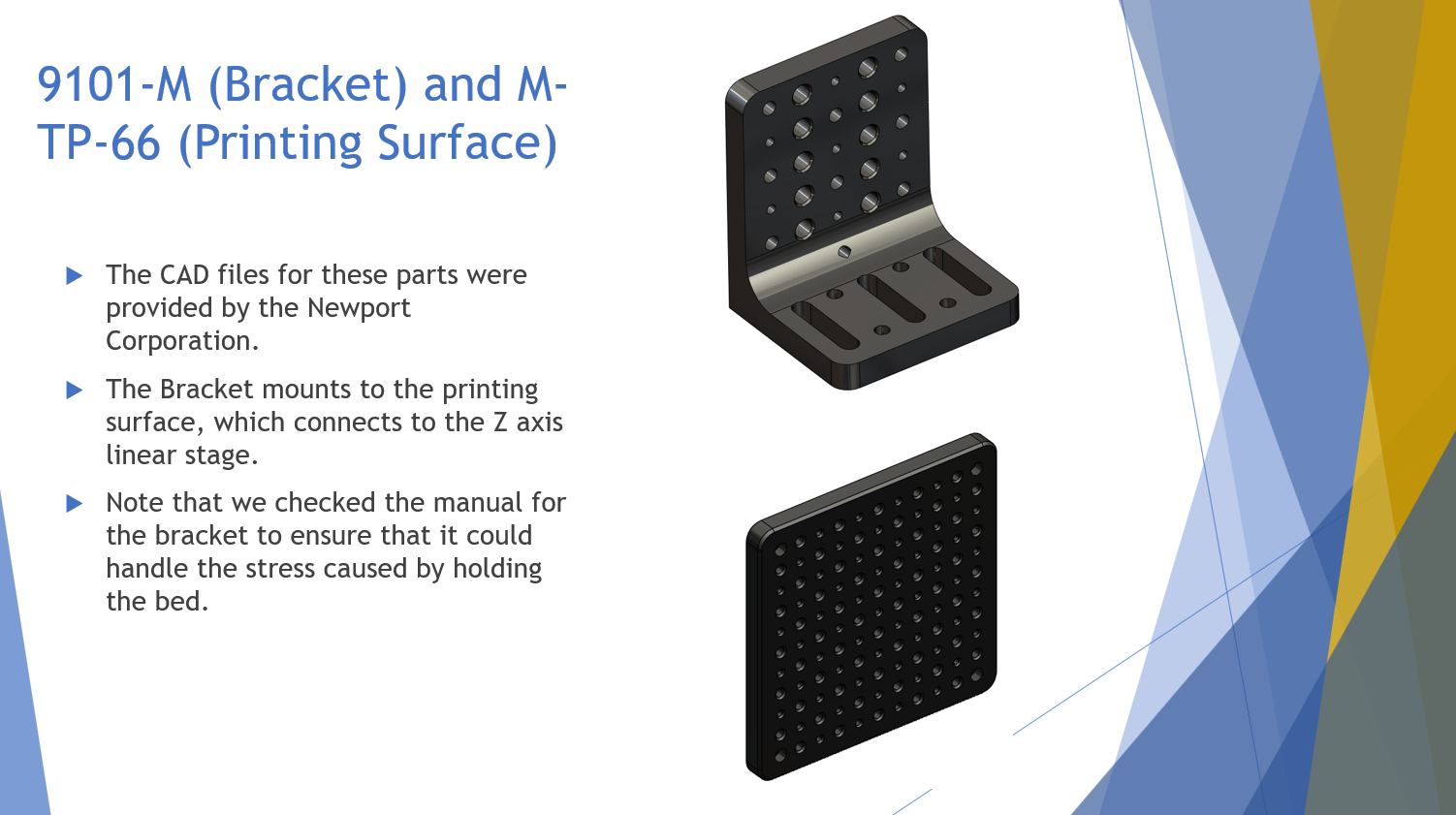

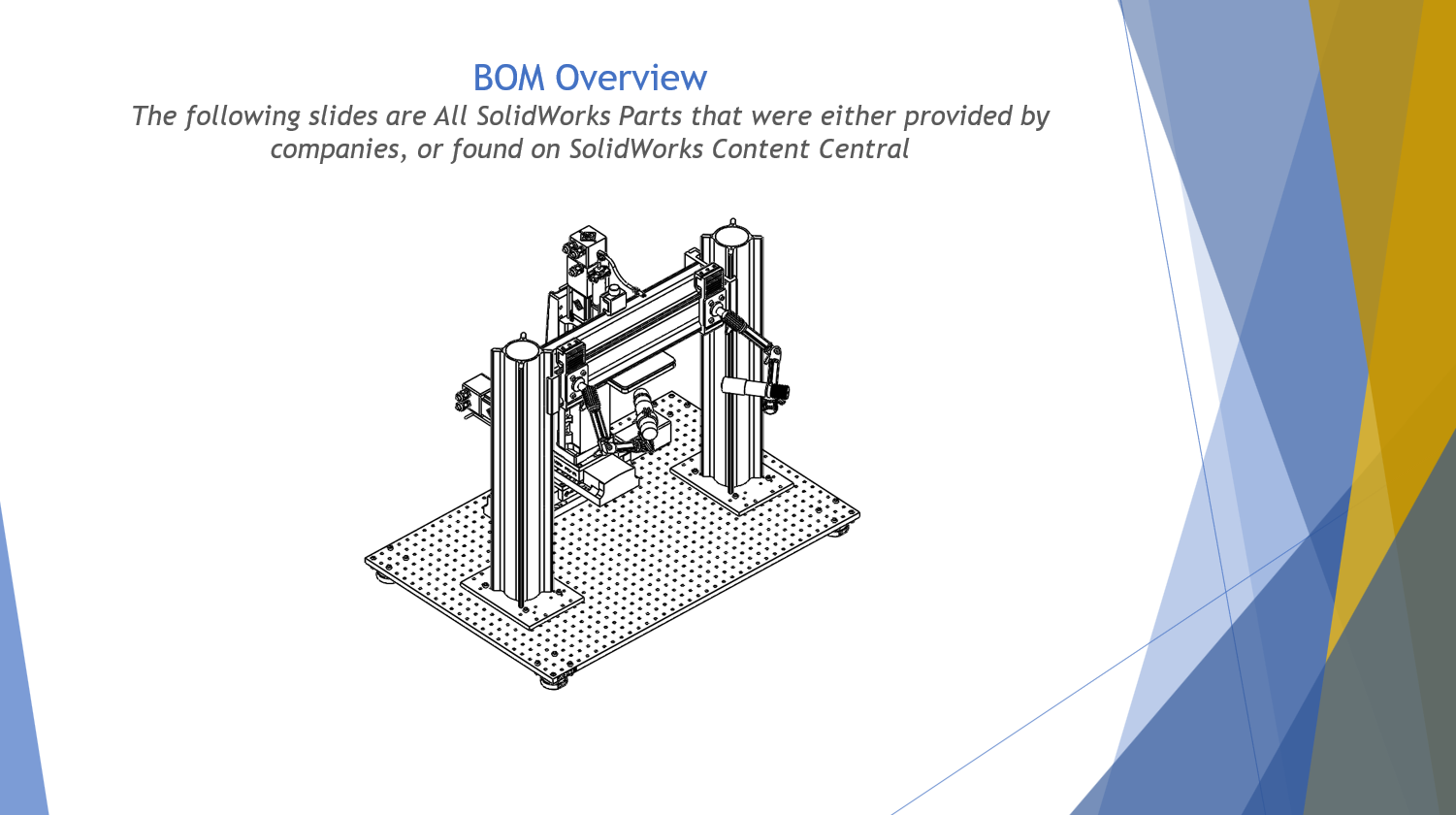

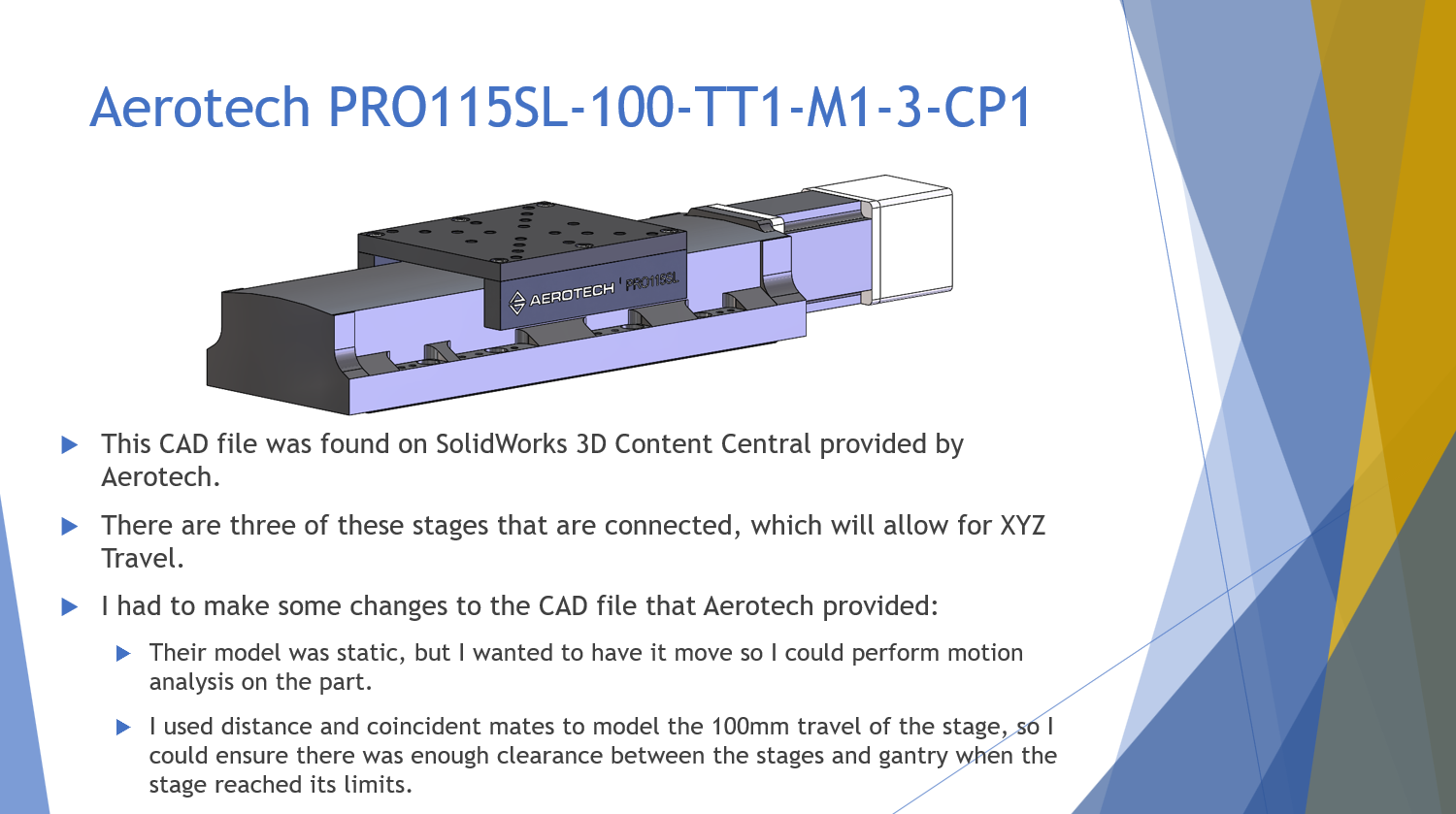

• Worked on the SolidWorks assembly for the Direct Ink Writing Printer.

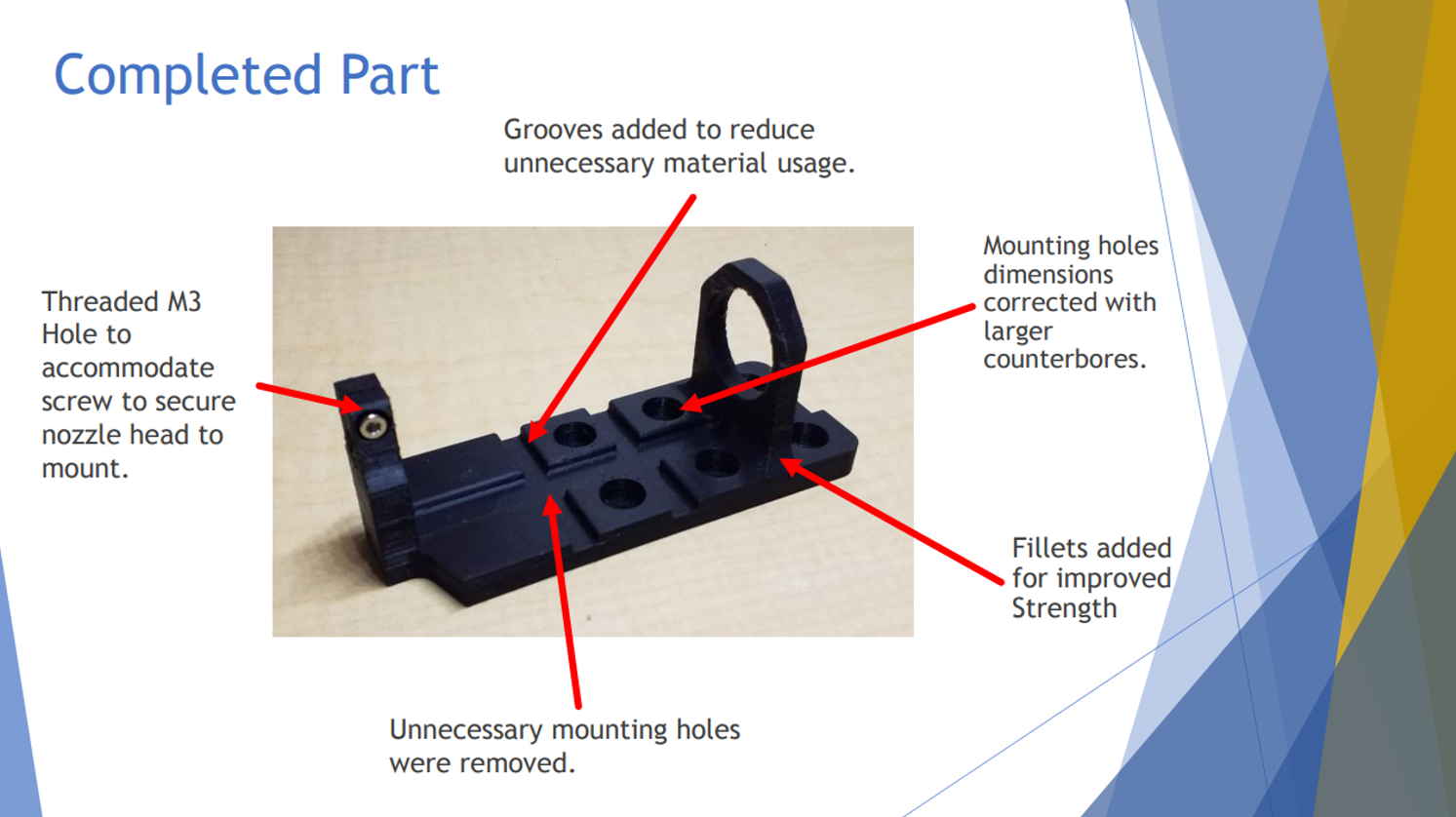

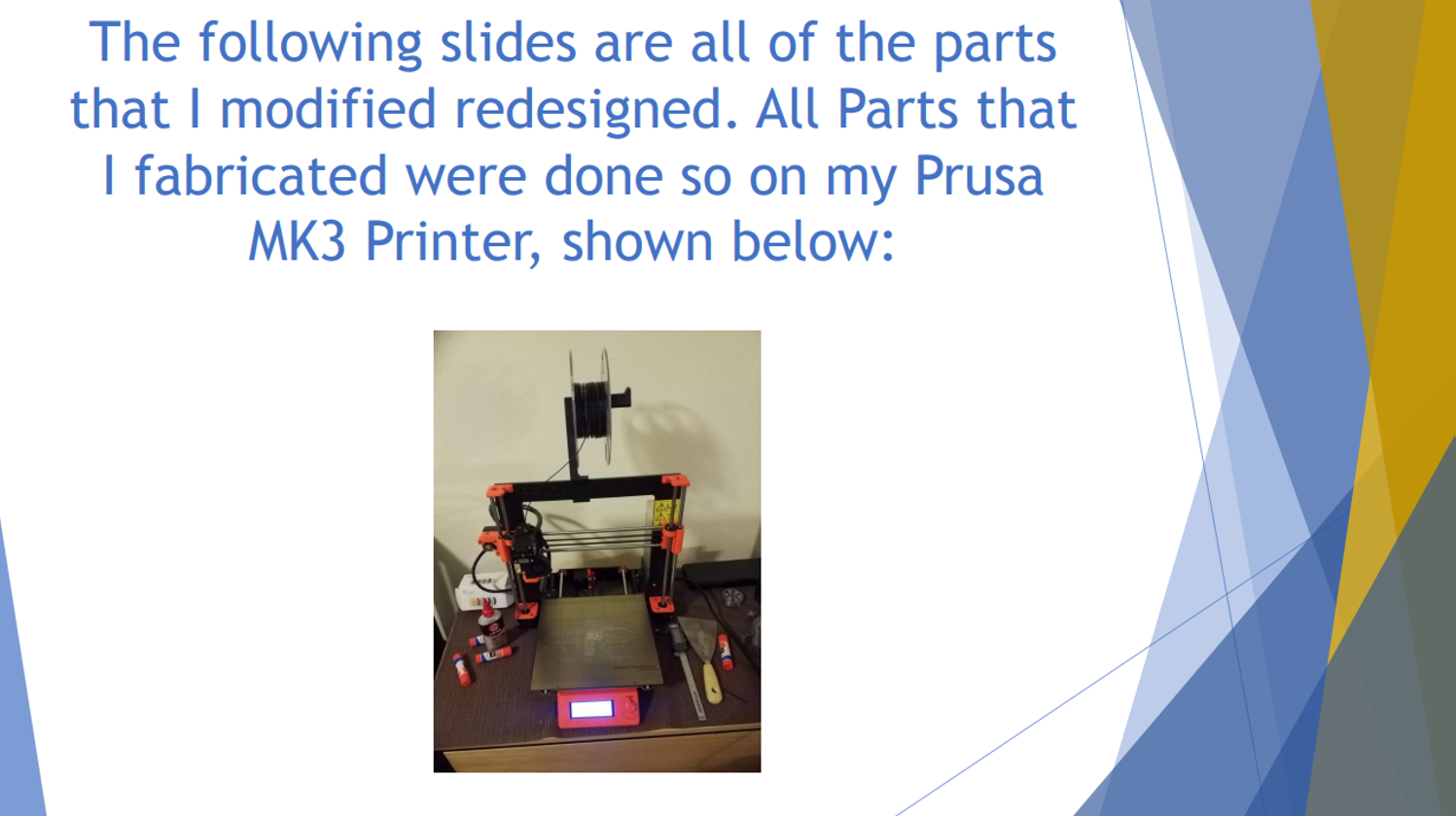

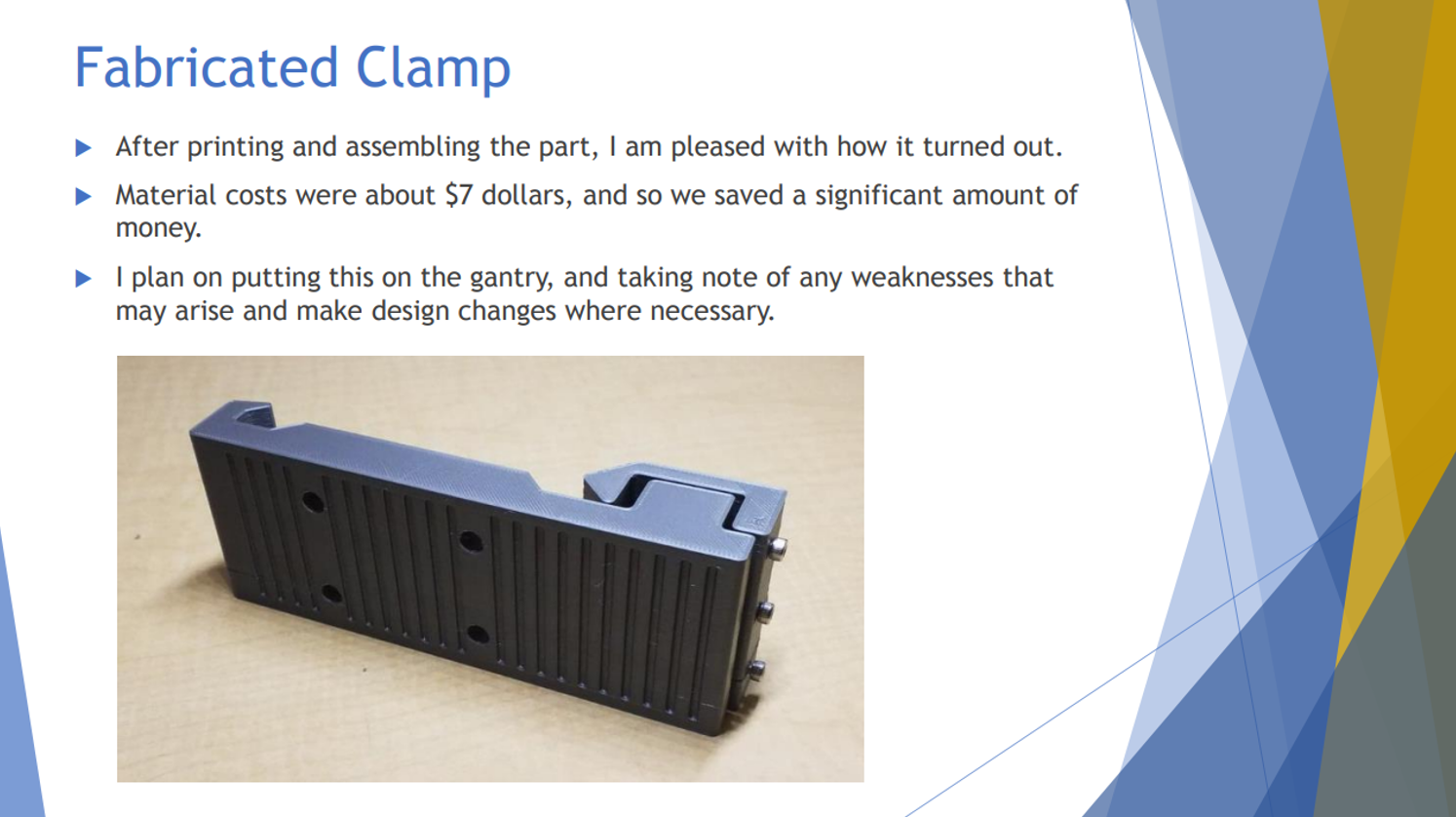

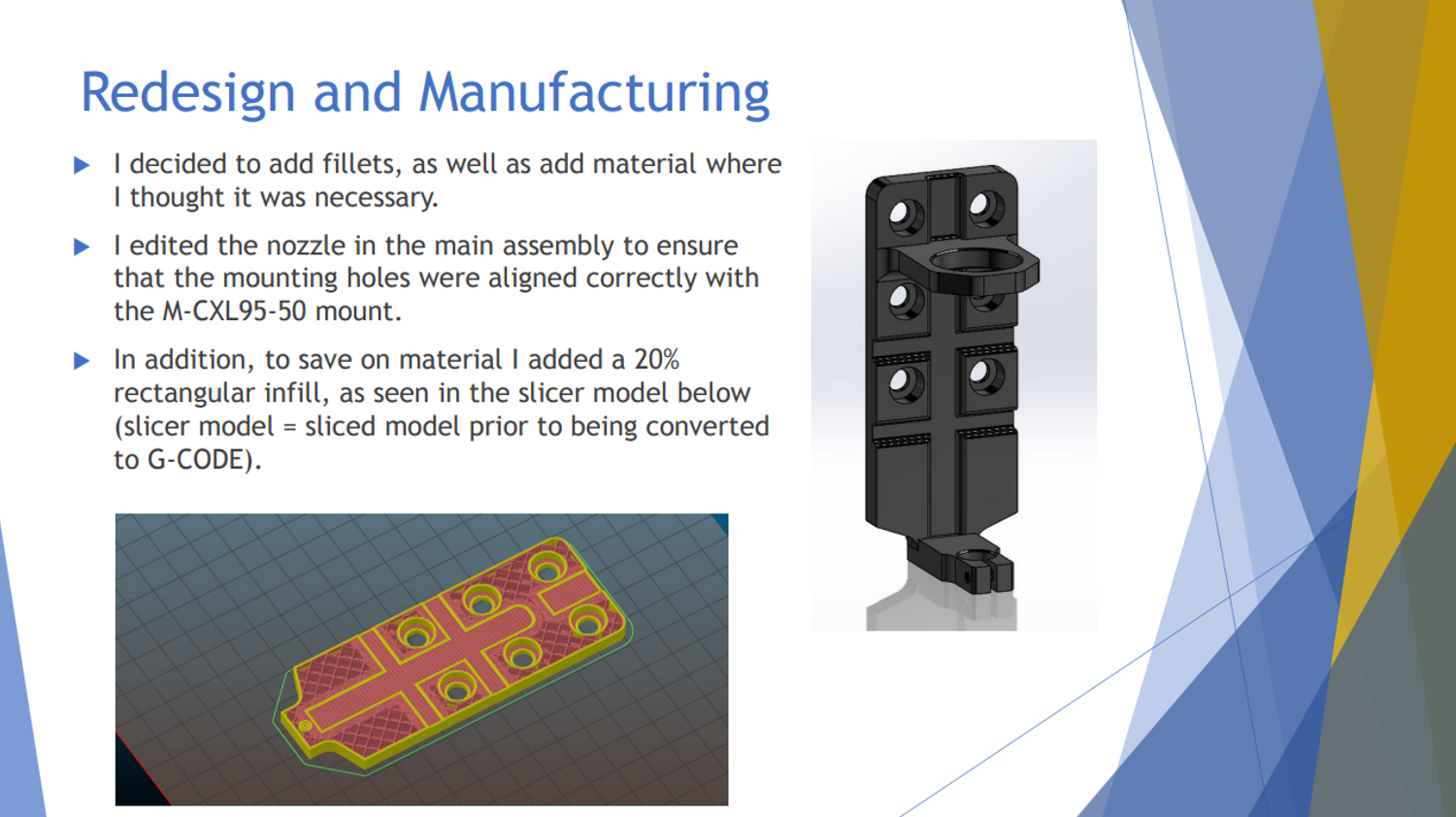

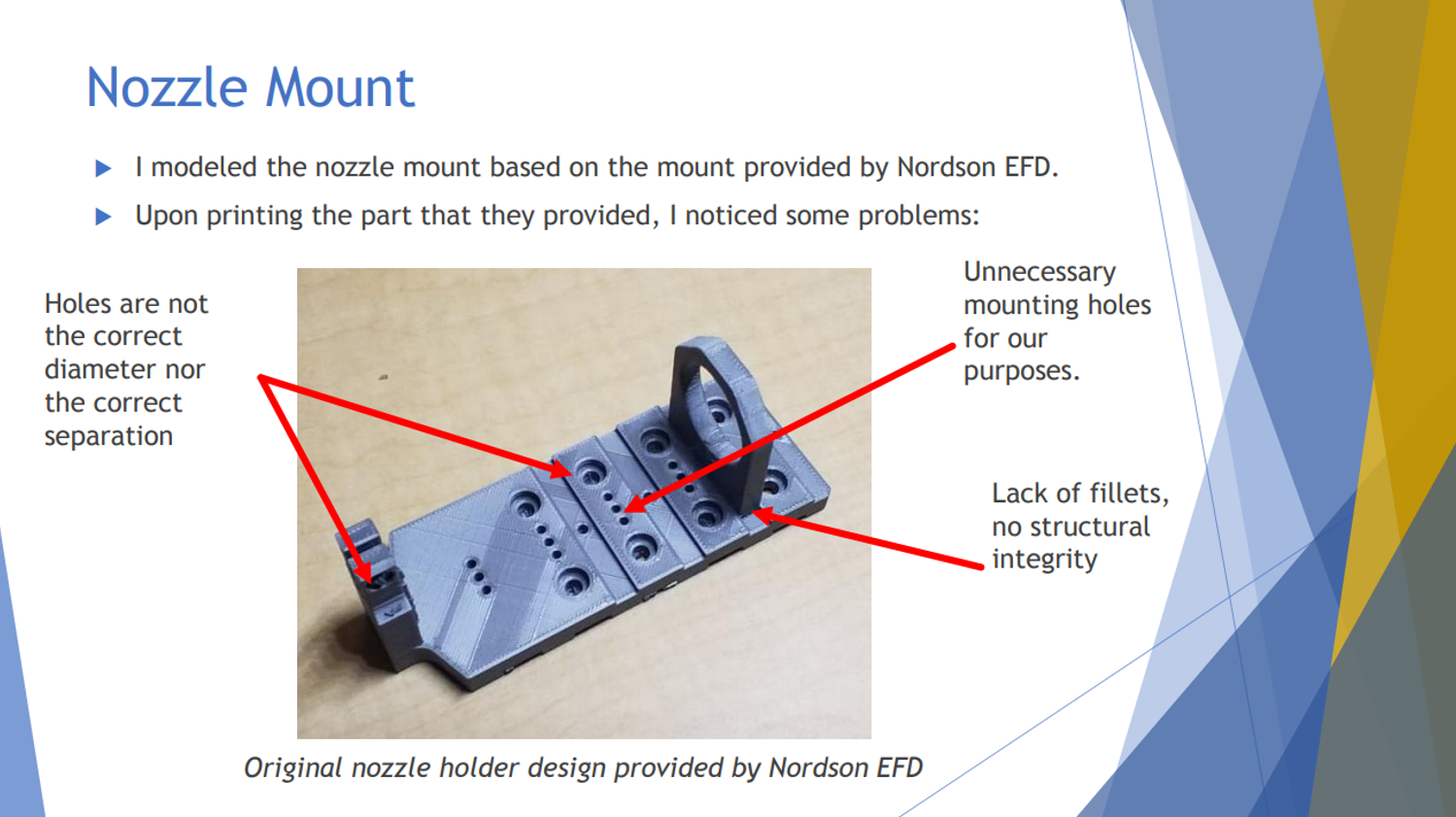

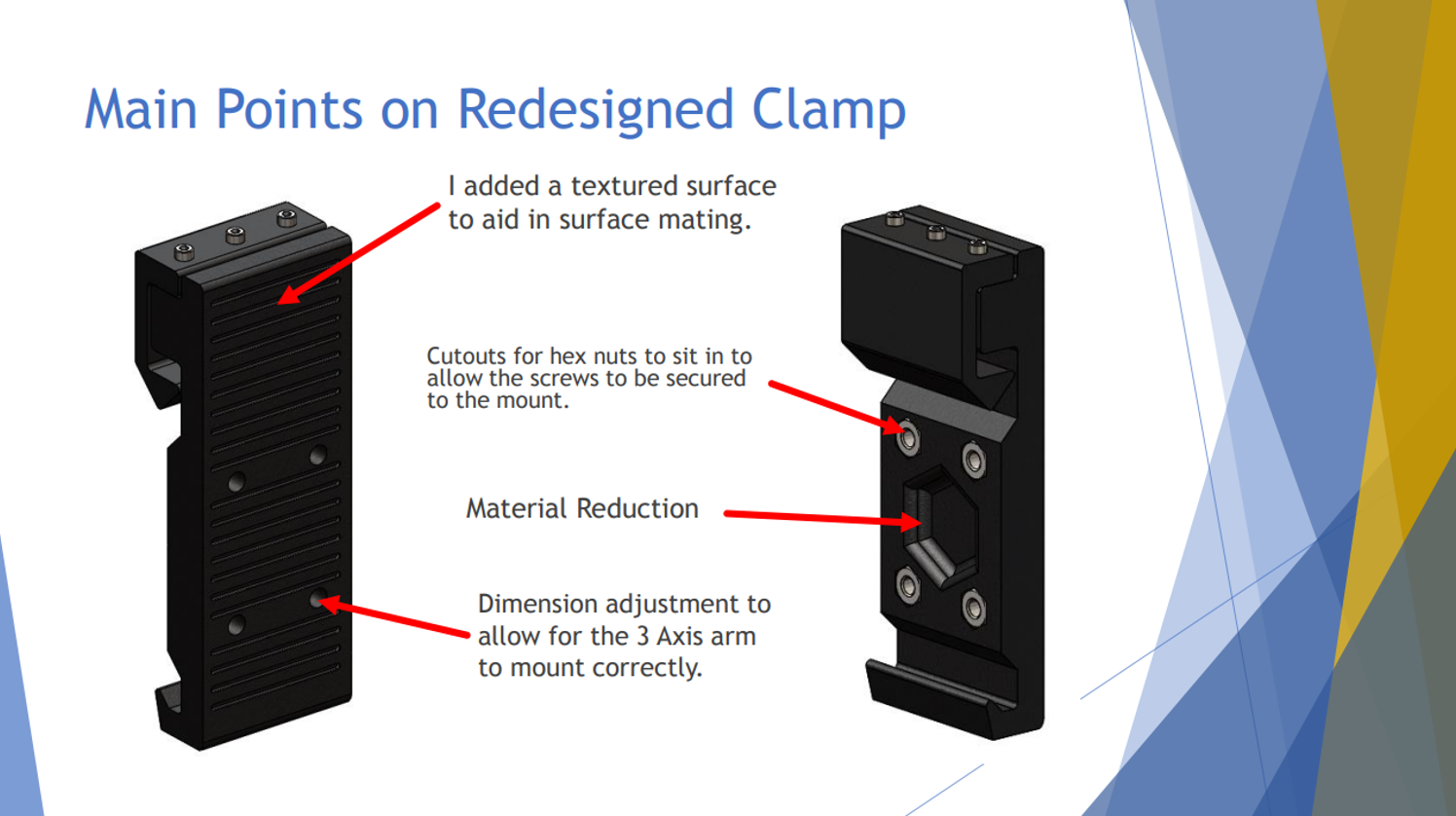

• Designed and manufactured components for the DIW printer using FDM.
• Collaborated with suppliers to meet design specifications and budget constraints.
• Designed and manufactured components for the DIW printer using FDM.
• Collaborated with suppliers to meet design specifications and budget constraints.
The design was handed off to the team at the end of my time with the team to continue development of the printer for their research project.
Summary of Intended Functional Performance of the Direct Ink Writing Printer

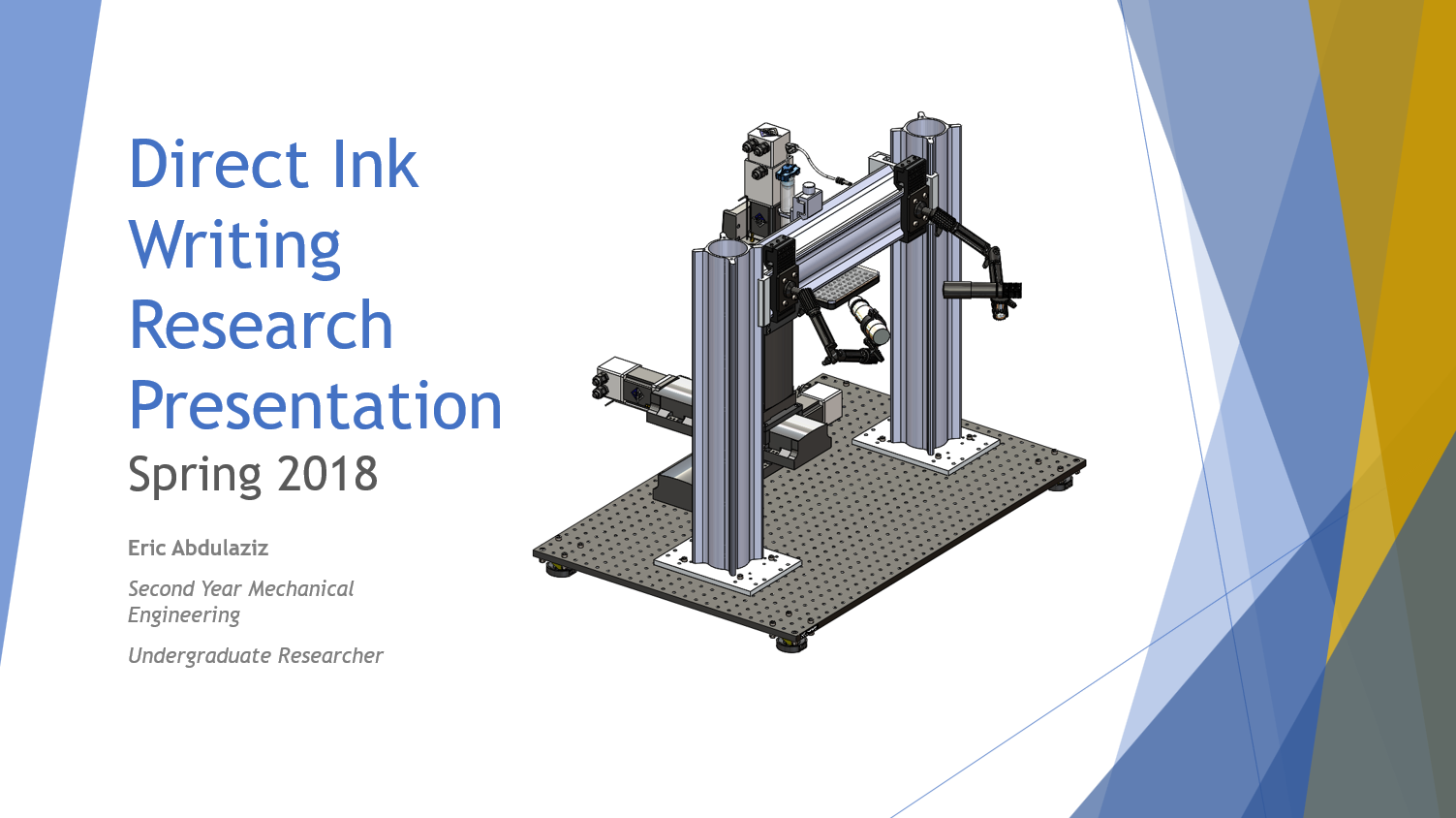

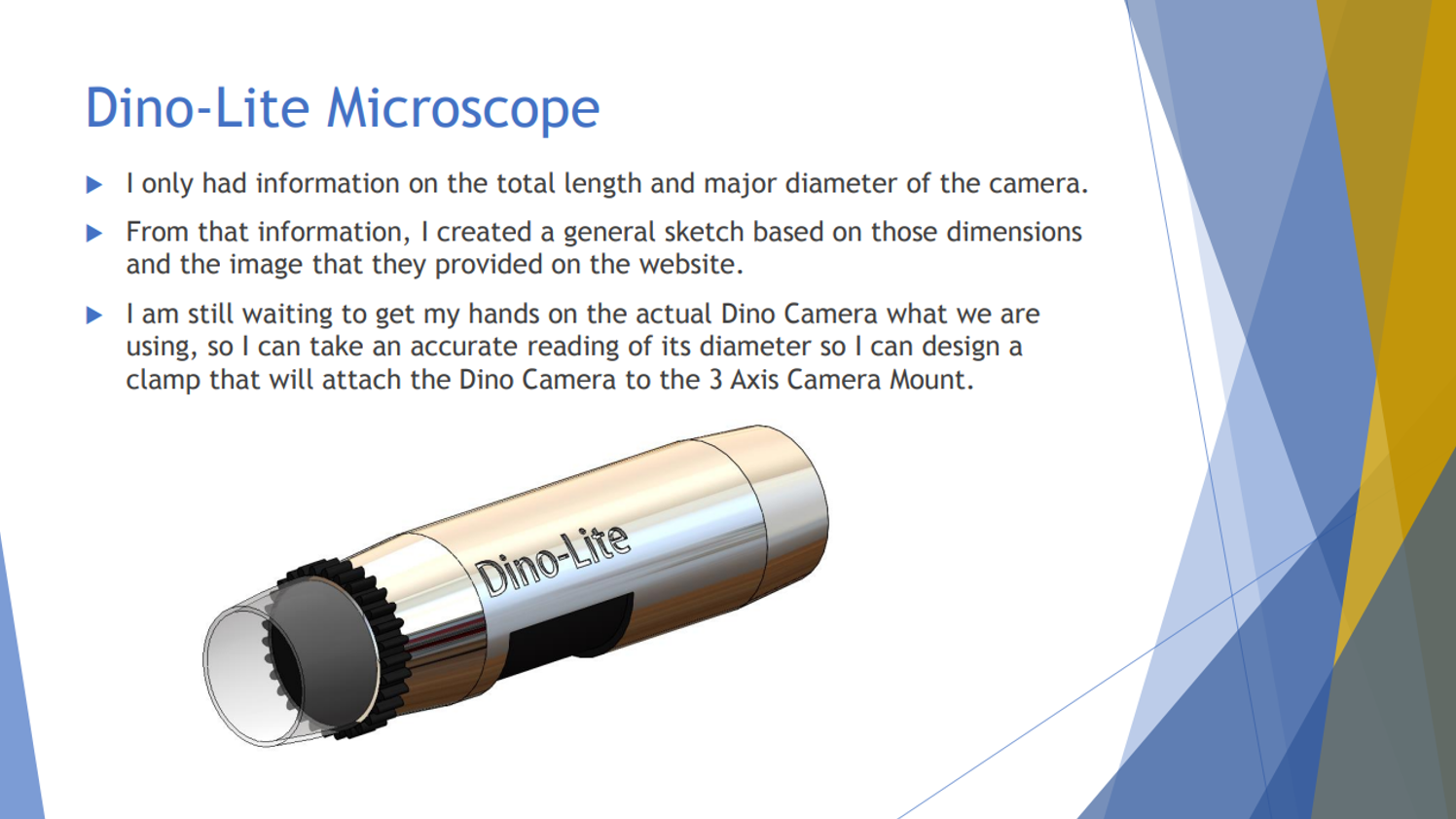

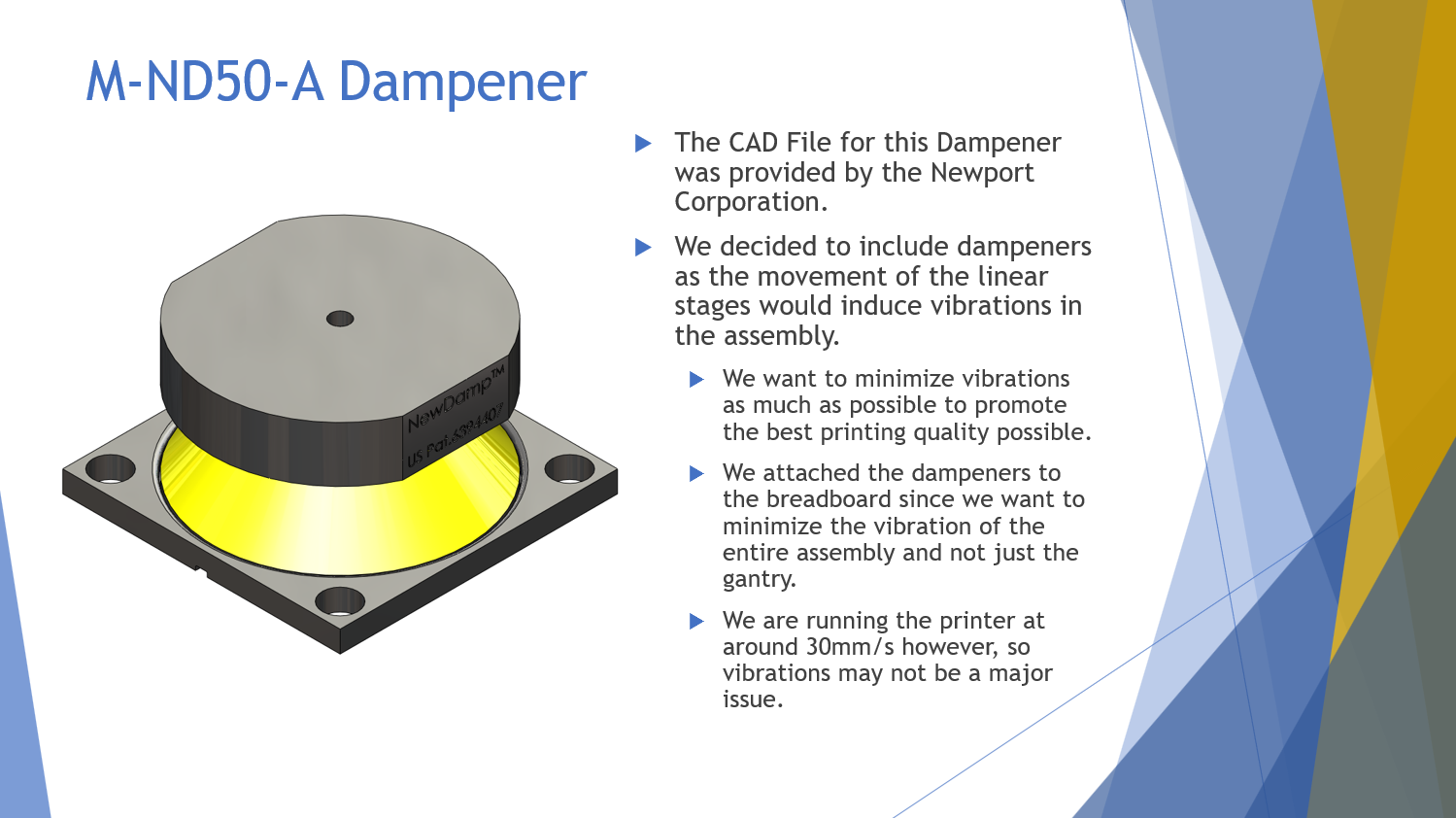

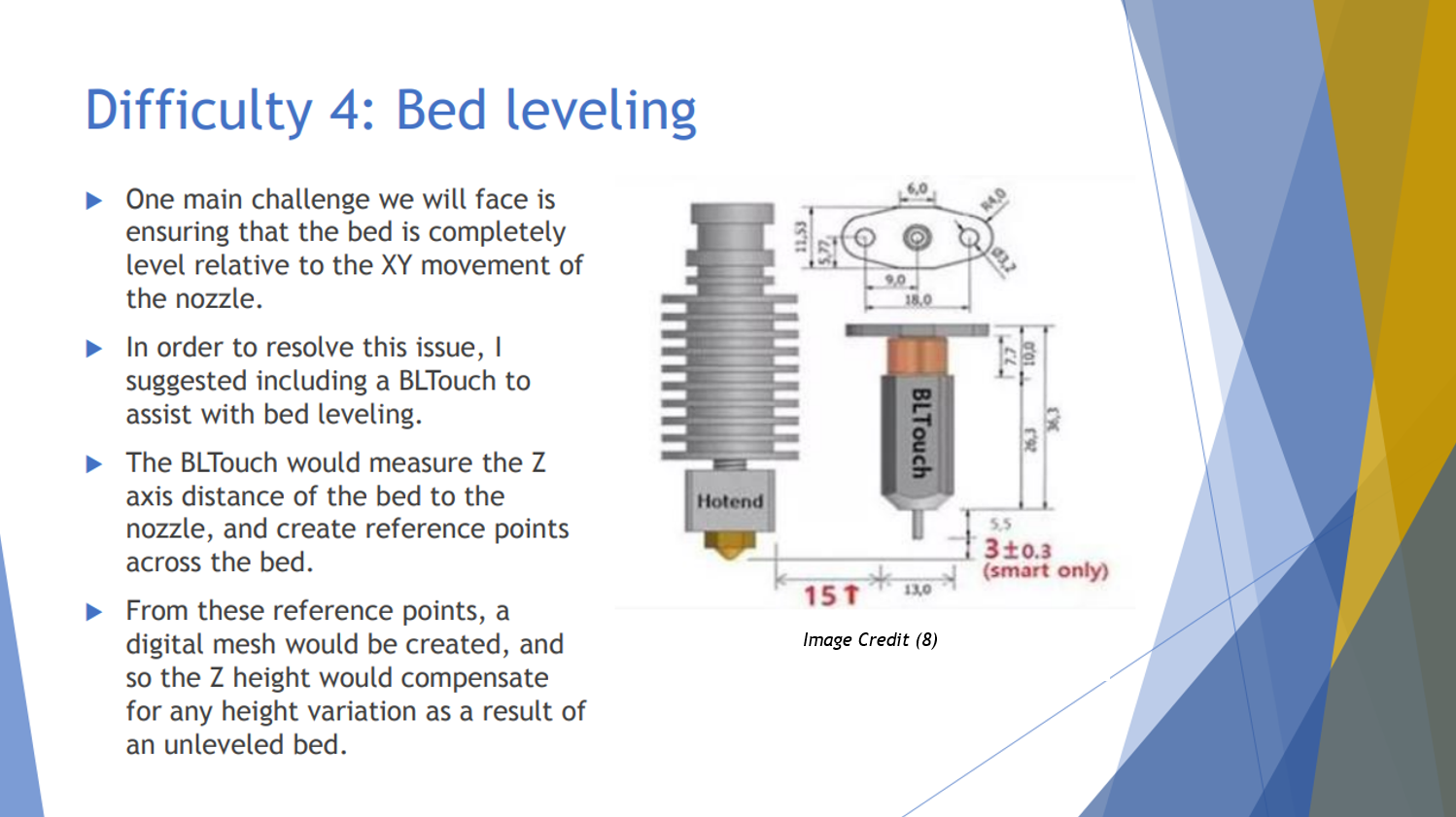

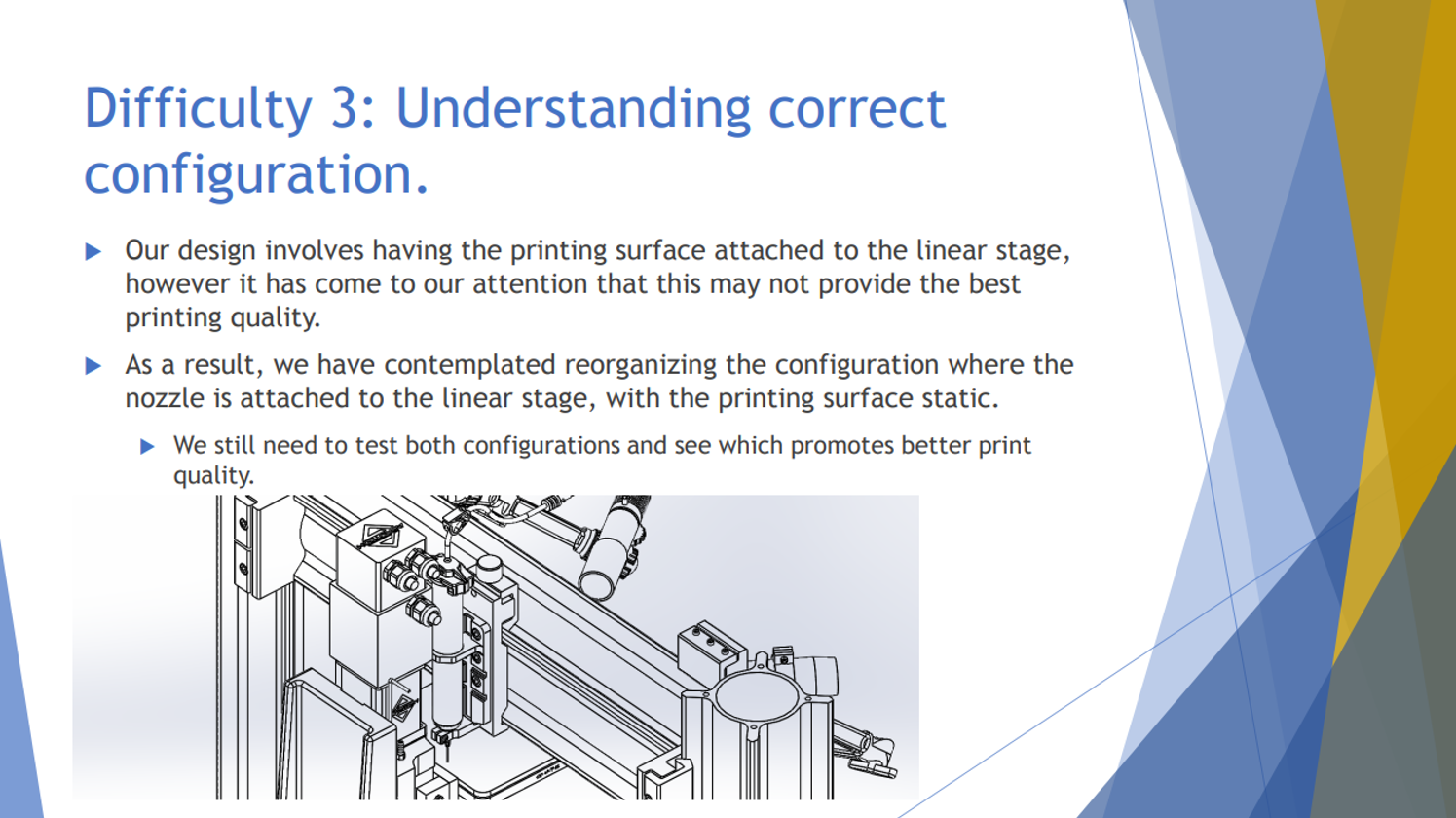

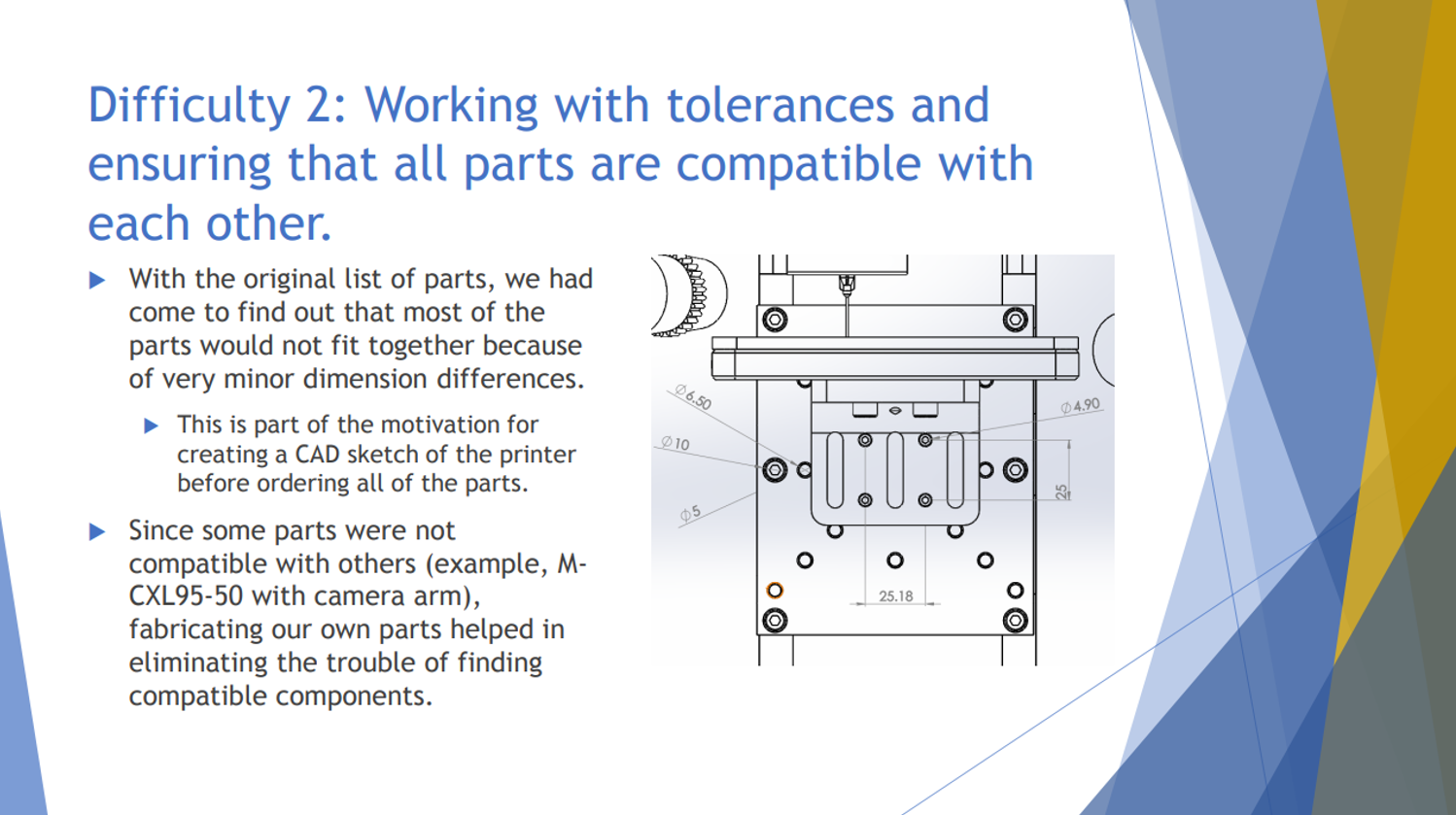

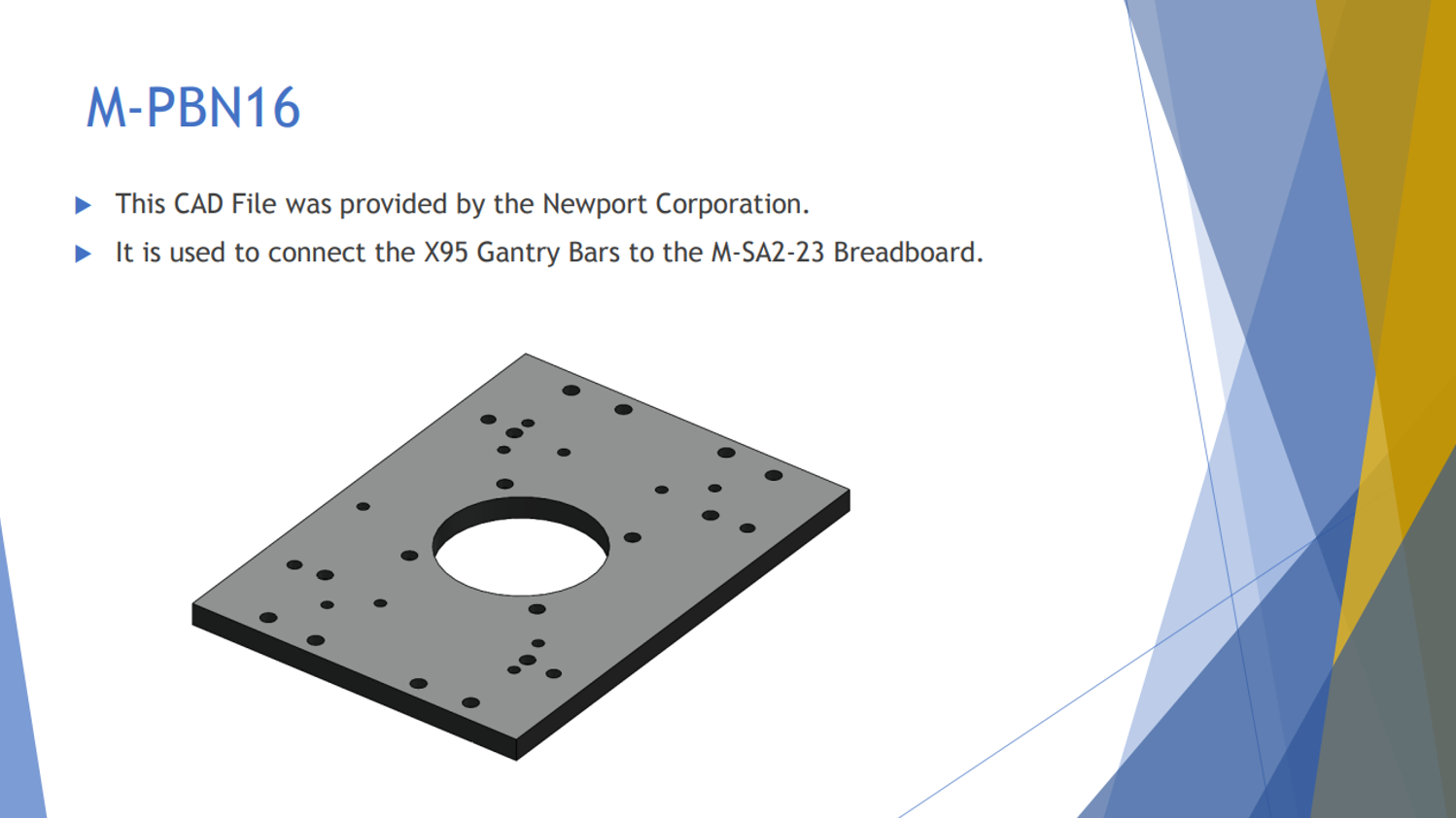

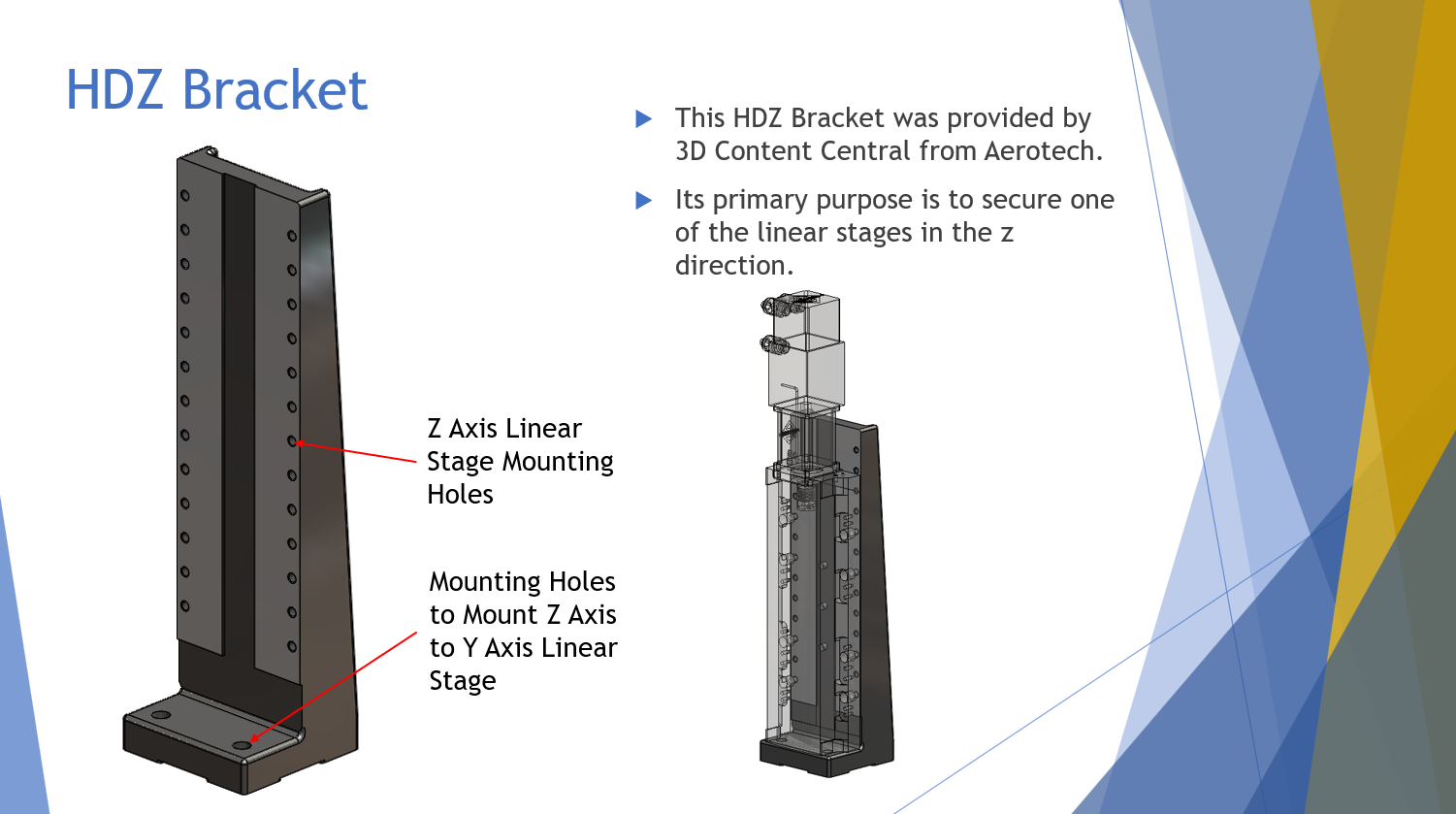

Final Presentation
References
(1) Newman, John. “Monash University 3D Prints Complete Jet Engine.” Digital Engineering, 27 Feb. 2015, http://www.rapidreadytech.com/2015/02/monash-university-3d-prints-complete-jet-engine/.
(2) Biocompatibility of Advanced Manufactured Titanium Implants—a Review. https://www.researchgate.net/publication/269836411_Biocompatibility_of_Advanced_Manufactured_Titanium_Implants-A_Review.
(3) Hurt, C., et al. “Combining Additive Manufacturing and Catalysis: A Review.” Catalysis Science & Technology, The Royal Society of Chemistry, 27 June 2017, http://pubs.rsc.org/en/content/articlehtml/2017/cy/c7cy00615b.

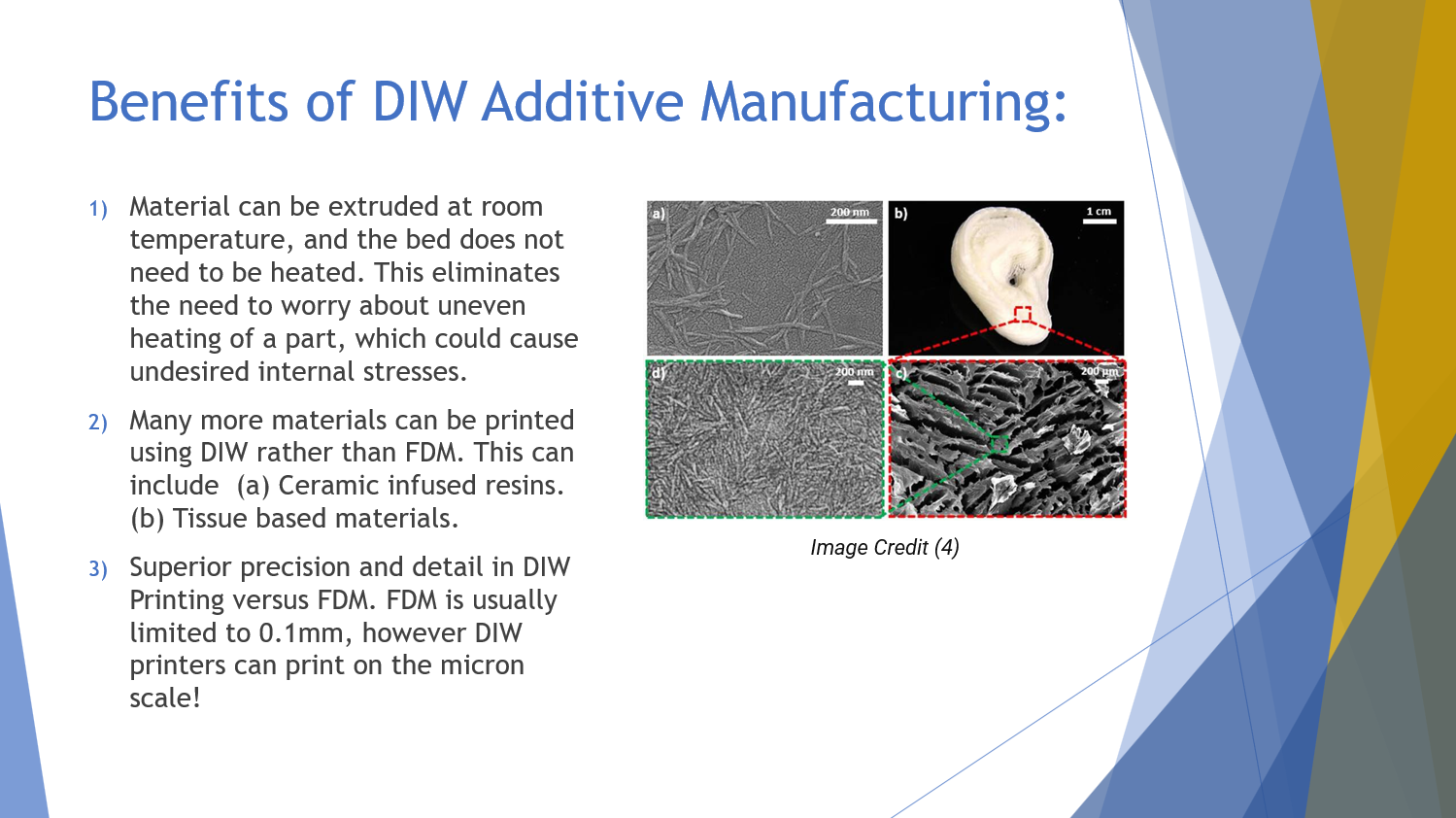

(4) Li, V.CF., Dunn, C.K., Zhang, Z. et al. Direct Ink Write (DIW) 3D Printed Cellulose Nanocrystal Aerogel Structures. Sci Rep 7, 8018 (2017). https://doi.org/10.1038/s41598-017-07771-y

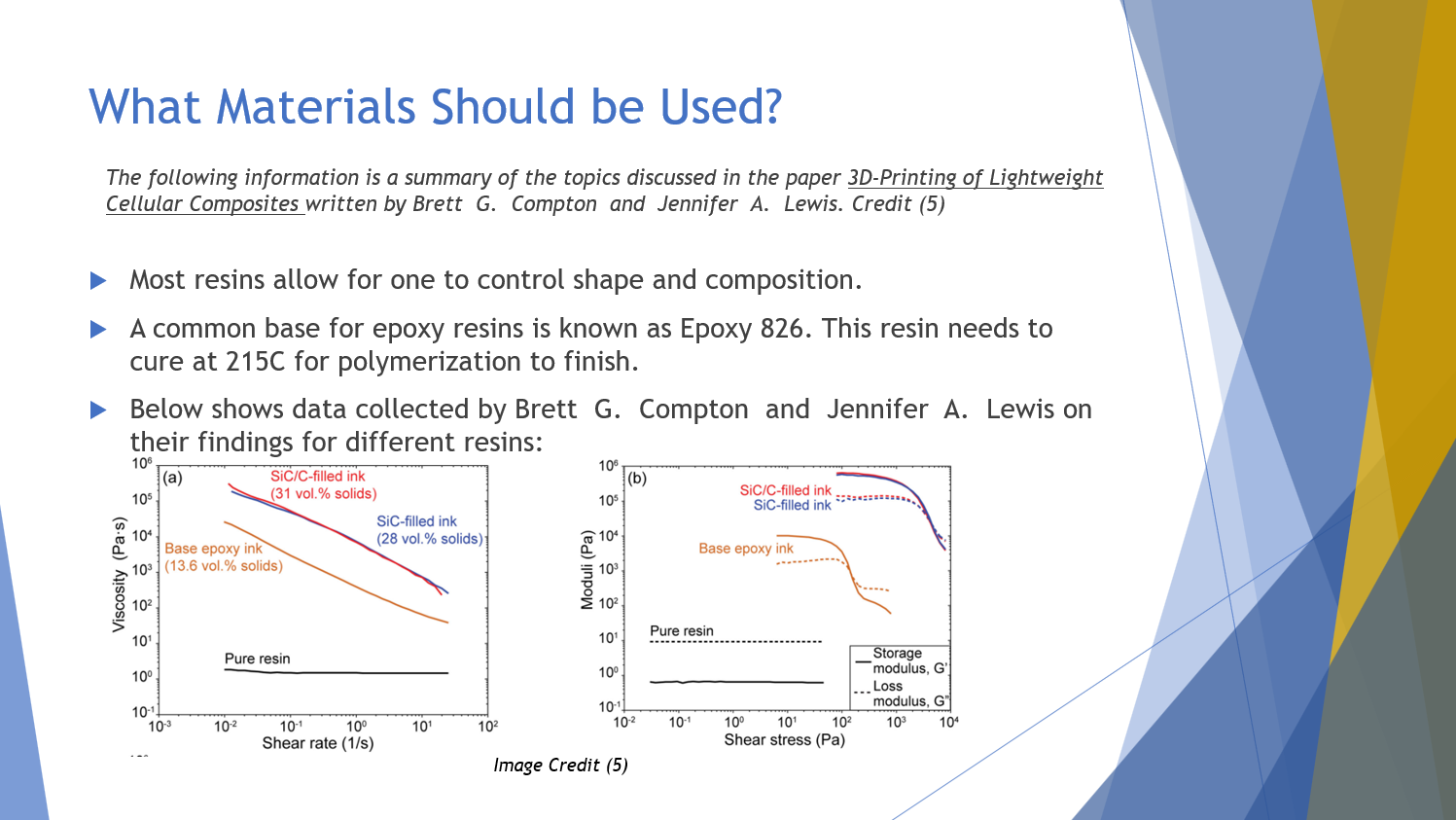

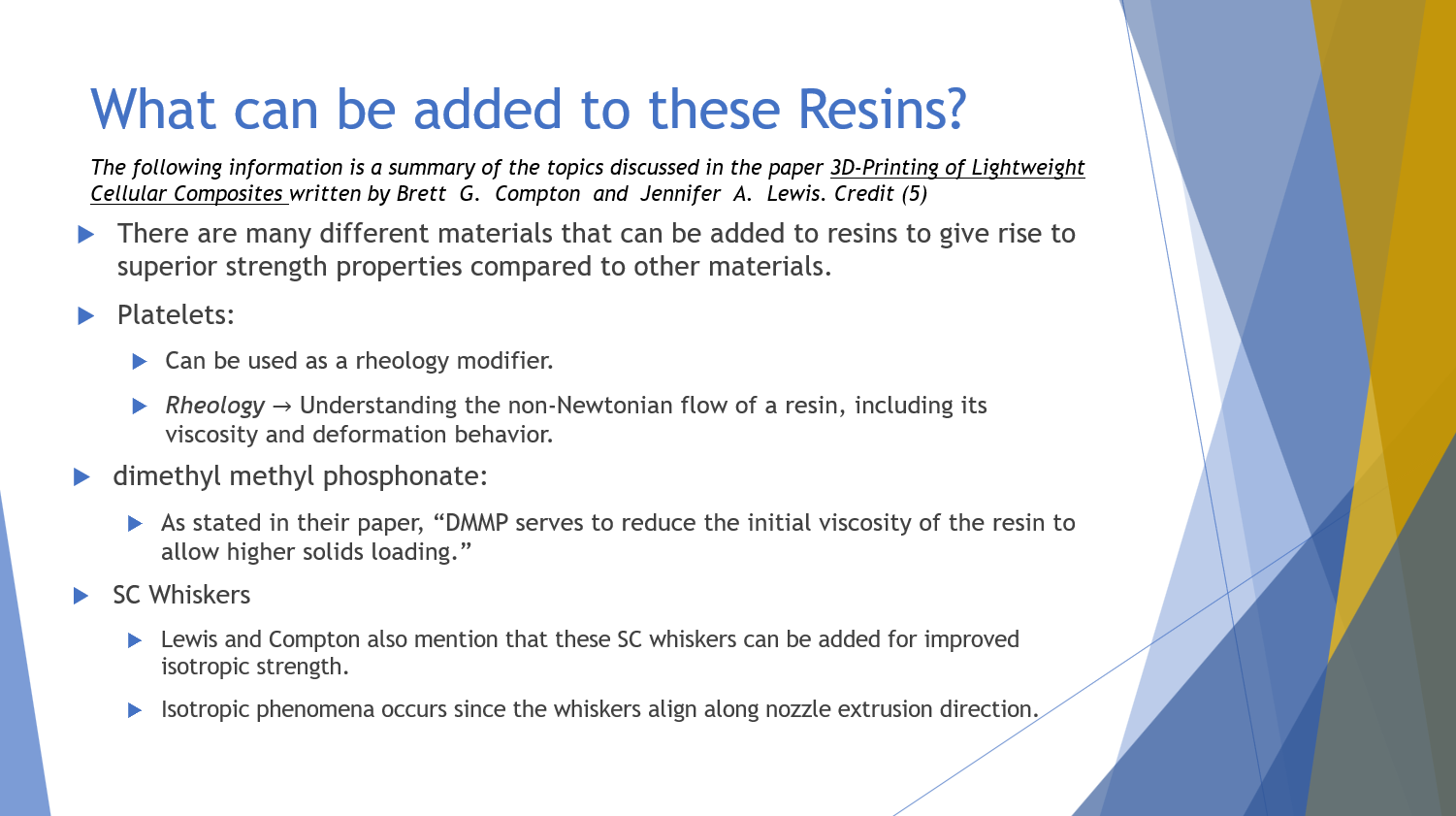

(5) Compton BG, Lewis JA. 3D-printing of lightweight cellular composites. Adv Mater. 2014 Sep 10;26(34):5930-5. doi: 10.1002/adma.201401804. Epub 2014 Jun 18. PMID: 24942232.

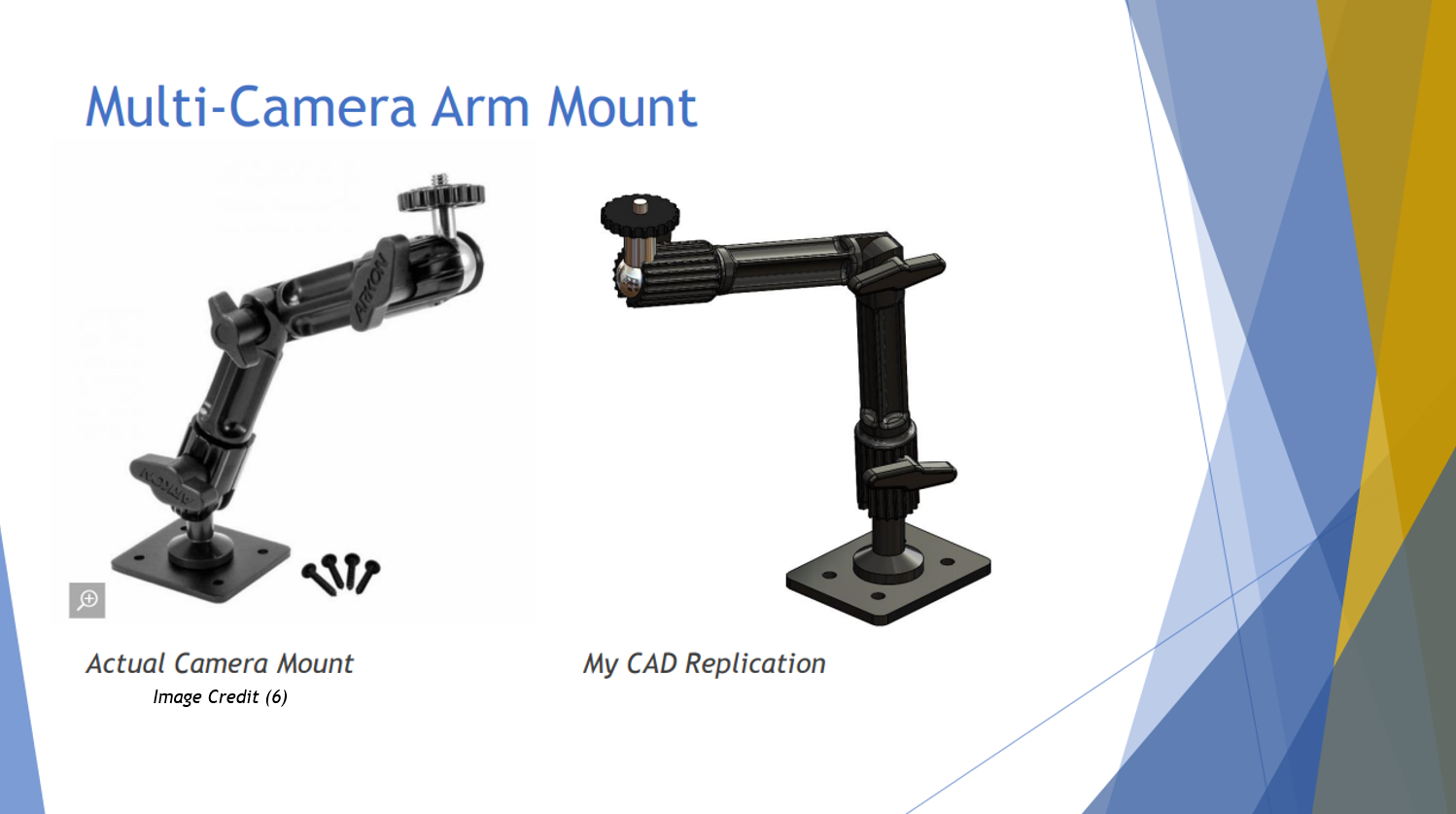

(6) “Camera Wall Drilled Base Mount for Security Camcorders Cameras.” Arkon.com, http://www.arkon.com/product/CMPHD006-camera-wall-mount.html.
(7) Biocompatibility of Advanced Manufactured Titanium Implants—a Review. https://www.researchgate.net/publication/269836411_Biocompatibility_of_Advanced_Manufactured_Titanium_Implants-A_Review.

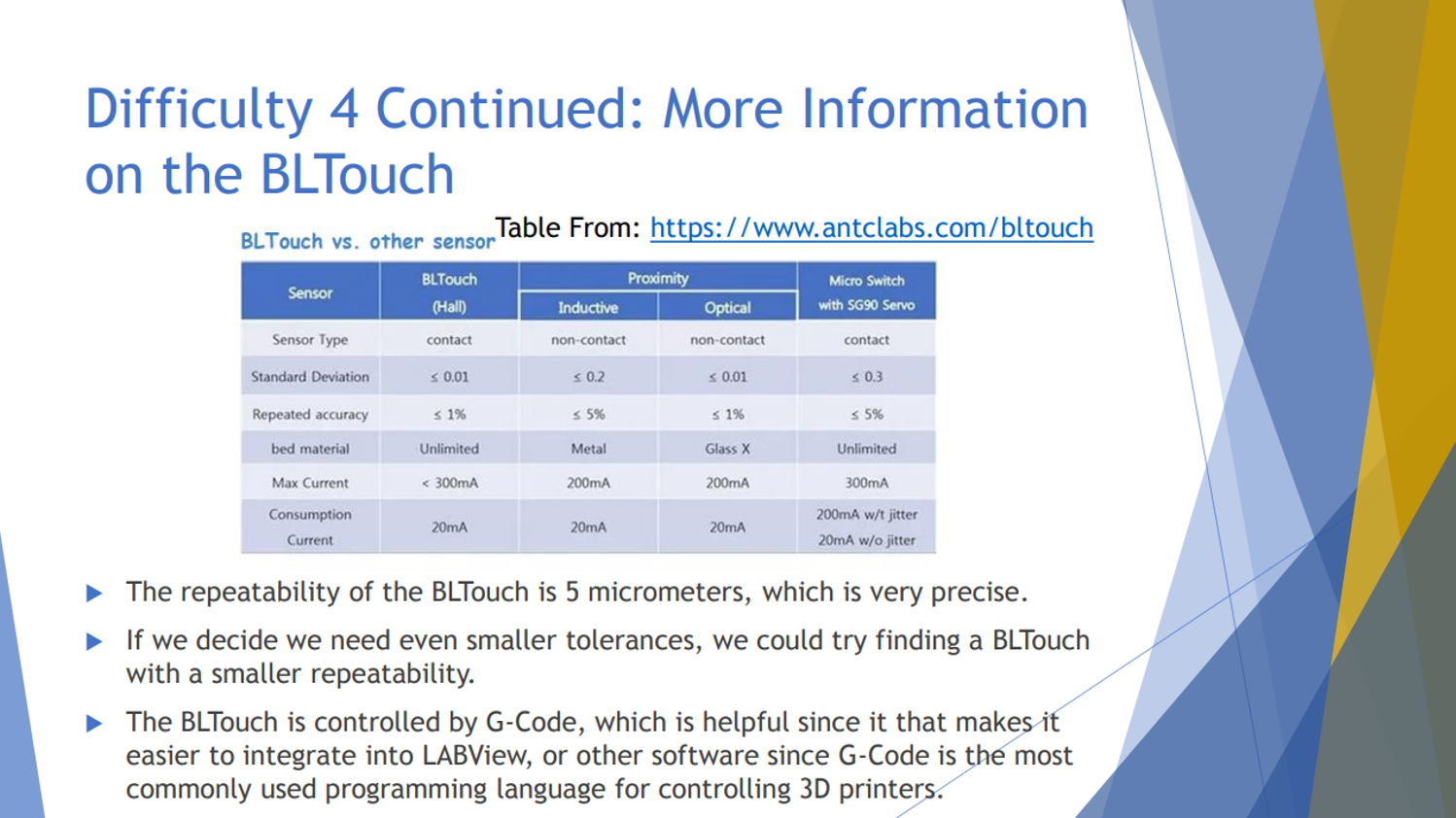

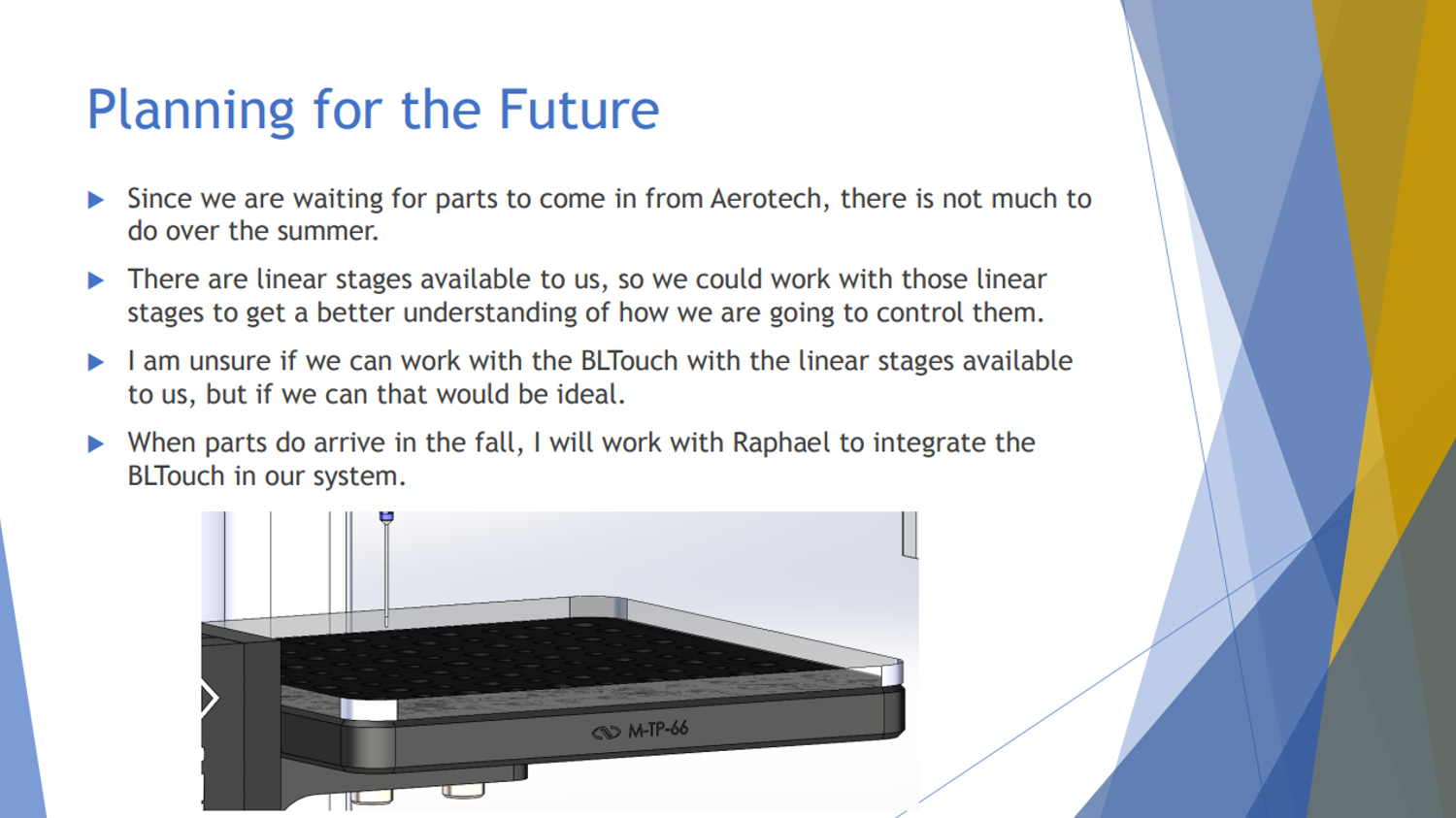

(8) “BLTouch V2.” Antclabs, https://www.antclabs.com/bltouch.
